ASSEMBLY・HANDLING

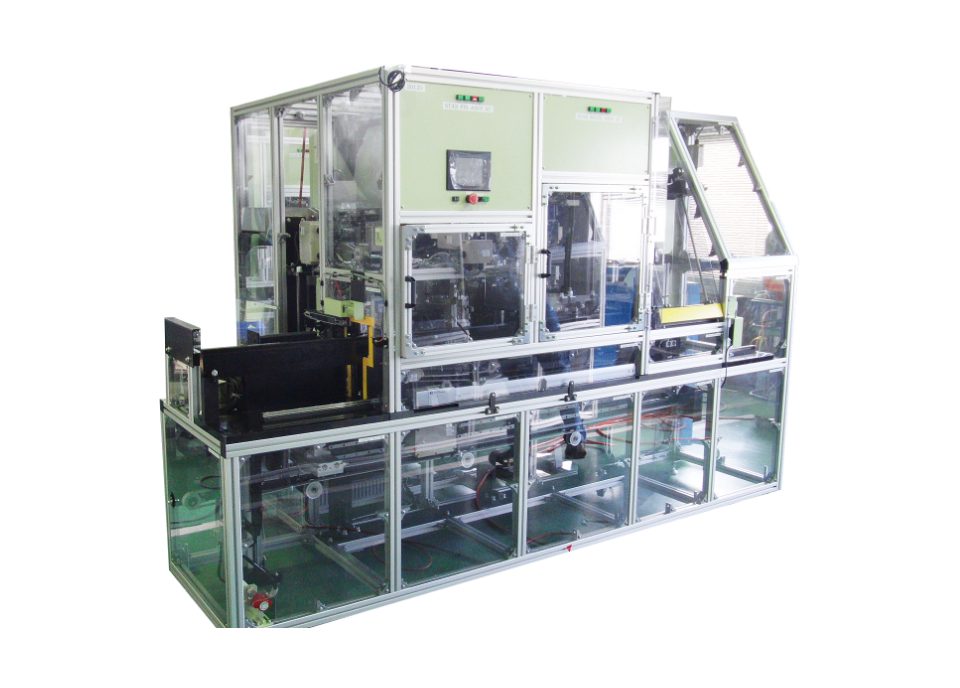

Bracket assembly machine
We manufacture various assembly machines such as bolt tightening, press fitting, pin insertion, seal insertion, greasing, welding, etc., and various inspection equipment such as leak test, flow measurement, torque measurement, image inspection, electrical inspection, etc. We have a wide range of production results, not only for single machines but also for automatic assembly lines. We are active in a wide range of industries, including the automotive and electrical industries.
LEAK TEST

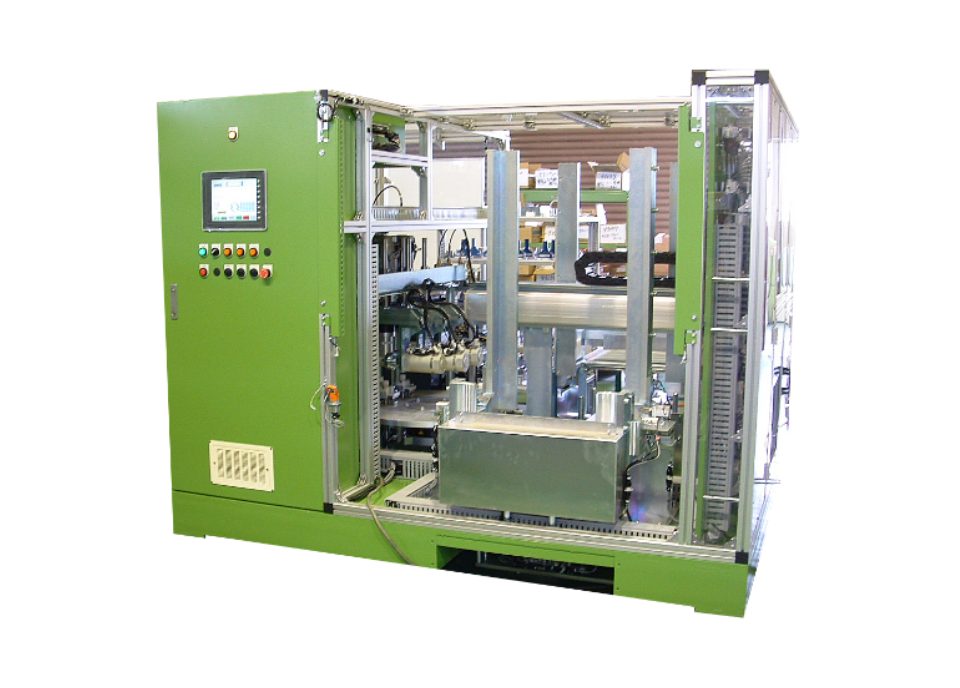

Automatic joint leak test machine
Reliable inspection for leakage, which is a fatal defect for many products in market!
What is a leak test machine?
By combining an air leak tester (manufactured by Cosmo Instruments) and a clamping/sealing device that is most suitable for each product, we perform high-precision inspections to check for leaks in various products before they occur. Accurate pass/fail judgments can be used to detect “leakage” in all products and prevent product loss.
By combining an air leak tester (manufactured by Cosmo Instruments) and a clamping/sealing device that is most suitable for each product, we perform high-precision inspections to check for leaks in various products before they occur. Accurate pass/fail judgments can be used to detect “leakage” in all products and prevent product loss.
The key of leak testing!
In order to fully demonstrate the performance of the tester, it is necessary to select an inspection method and tester according to the contents of the inspection, and to “seal the product reliably and stably”. Our know-how accumulated over more than 20 years of device research and development is utilized in the design and manufacture of clamping and sealing devices for products of various shapes and sizes, and is active in the industrial world.
● In addition to air leak testing, we also offer leak testing equipment equipped with helium detectors, flow rate control, flow rate measurement, and other measurement and inspection of flow characteristics based on our many experiences to meet customer needs. We inspect a wide variety of items, including automobile parts, gas equipment, and electrical parts.
VISUAL INSPECTION

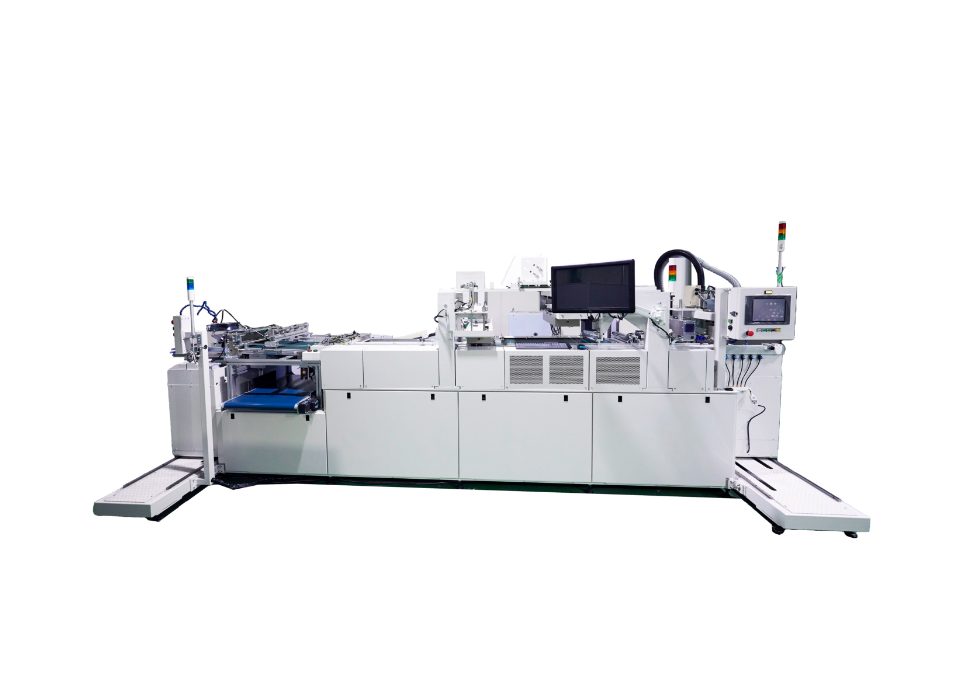

Blanks Visual Inspection Machine
Efficiently and reliably check package printing
Improved quality! With paper dust removal function!
What is the Blanks?
In the packaging process, printed thick paper is punched into the shape of a box (material). By replacing the conventional visual inspection of the printing surface of blanks with a blank inspection device, the oversights that tend to occur in visual inspections are eliminated.
With the technical cooperation of image processing manufacturers, our paper feeding mechanism is instantly inspected for printing defects such as small stains, jumps, water drops, fading, and scratches.
Moreover, it is efficient because it can inspect both the front and back sides at the same time. (We also offer surface inspection only types.)
We can also handle complicated dimensions and various dimensions of blanks.
Options such as paper dust removal, tape inserter (for quantity management), and metal detector are also available.
(1) Paper feed section
By adopting the top field method, the stacked blanks are reliably fed to the inspection table one by one without damaging them. Stocker’s blank loadage is 500-700mm height x 2 set.
(2) Inspection section
With a positioning system (patented) using a unique offset roller, blanks are transported and inspected with a high accuracy of ±0.1mm.
(3) Defective product discharge unit
As a result of inspection, only defective products are discharged here.
(4) Non-defective product stocker
We collect good quality products. The stacking amount of blanks is 500-700mm height x 2 set.
● Main specifications
| Standard type | Oval type | Large format type | |
|---|---|---|---|
| Maximum paper size (width x length mm) | 500×500 | 300×300 | 600×600 |
| Minimum paper size (width x length mm) | 100×100 | 60×80 | 120×150 |
| Paper thickness (mm) | 0.4～0.7㎜ | 0.4～0.7㎜ | 0.5～0.8㎜ |
| Machine dimensions (length x width x height mm) | 3900×2230×2200 | 3520×1820×2050 | 5650×2560×2300 |
| Machine weight (Kg) | 1,800 | 1,500 | 2,000 |
● Processing speed
| Work length | Speed 80m/min | Speed 100m/min | Speed 120m/min |
|---|---|---|---|
| 150mm | 16,000 sheets | 17,000 sheets | 21,000 sheets |
| 300mm | 9,000 sheets | 11,000 sheets | 12,900 sheets |
| 500mm | 6,000 sheets | 7,500 sheets | 9,000 sheets |
